ROBINSON RACING PRODUCTS
Robinson Racing GEN3 Slipper Units are over-engineered to meet the punishing demands
of the most powerfull brushless motor systems! GEN3 Slipper Units will not fail under
the enormous load conditions of todays brushless motor systems. The new GEN3 Slipper
Unit is a captured design to prevent slipper pad blowout and deliver maximum power to
the ground. The hi-performance hardened steel spur gear will not fail or strip. Aircraft
grade billet aluminum backplate will not bend or break. Increased surface area of the
oversized pad insures dependable performance. Less total parts reduces flex and wobble
in the spur gear and slipper unit.
|
|
[CLICK IMAGES TO ENLARGE]
|
|

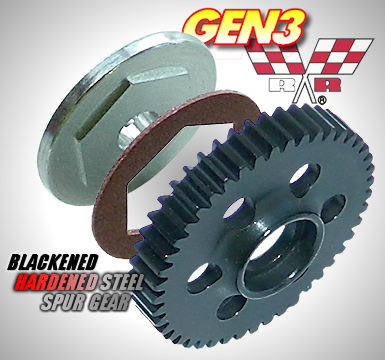

Traxxas Revo / Summit 1/16 Scale GEN3 Slipper Unit
|
|
|
BLACKENED HARDENED
STEEL SPUR GEAR
Precision machined, hardened steel spur, with a
blackened finish that improves lubricity (the
capacity to reduce friction) and anti-galling
(metal cracking/breaking from friction)
characteristics resulting in better mating
surfaces and smoother running gears.
SOLID BILLET ALUMINUM BACKPLATE
The backplate is 100% machined from aircraft grade solid billet aluminum making it very strong
and very hard. It will not warp or break. The backplate uses a captured
design to hold the extra thick slipper pad solidly in place.
READY FOR HI-PERFORMANCE FUN??
Hop-up your 1/16 SCALE REVO or SUMMIT and unleash the power and the FUN!!!
TECH NOTE: You're going to need a pinion gear to match this spur gear.
See the motor pinions listed below for a selection of Super Hard "Absolute" Steel motor pinions we
recommend to use with these GEN3 Slipper Units.
|
|
Part #
|
Description
|
Pitch
|
Teeth
|
Price
|
| 7745 |
Traxxas 1/16 Revo/Summit GEN3 Slipper Unit includes:
Hardened Blackened Steel Spur Gear 45 Teeth 48 Pitch, Slipper Pad,
and aluminum backplate. Note: Stock tooth count Revo 1/16.
|
48 Pitch |
45 |
$32.50 |
| 7750 |
Traxxas 1/16 Revo/Summit GEN3 Slipper Unit includes:
Hardened Blackened Steel Spur Gear 50 Teeth 48 Pitch, Slipper Pad,
and aluminum backplate. Note: Stock tooth count Summit 1/16. |
48 Pitch |
50 |
$32.50 |
|
|
[CLICK IMAGES TO ENLARGE]
|
|
Super Hard "Absolute" Steel Motor Pinion - 48 Pitch
|
|
|
PREMIUM HEAT TREATED "ABSOLUTE" STEEL PINION
Super hard, heat treated, "Absolute" pinion gears are a must for using with our steel spur gears and will last
and last if used with plastic spur gears. In sizes 9 through 23 teeth. All pinions stamped with tooth number.
1/8 inch bore. One 5-40 set screw included. 1/16 inch allen wrench (NOT INCLUDED) fits the 5/40 set screw.
|
|
Part #
|
Description
|
Bore/Pitch
|
Teeth
|
Price
|
| 1416 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
16T |
$4.95 |
| 1417 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
17T |
$4.95 |
| 1418 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
18T |
$4.95 |
| 1419 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
19T |
$4.95 |
| 1420 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
20T |
$4.95 |
| 1421 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
21T |
$4.95 |
| 1422 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
22T |
$4.95 |
| 1423 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
23T |
$4.95 |
| 1424 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
24T |
$4.95 |
| 1425 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
25T |
$4.95 |
| 1426 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
26T |
$4.95 |
| 1427 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
27T |
$4.95 |
| 1428 |
Super Hard "Absolute" Steel Motor Pinion |
1/8" / 48 pitch |
28T |
$4.95 |
| 1001 |
Set Screws 5-40 6 pcs. |
|
|
$1.00 |
|
